Anti Static Supplies

Anti-Static Soldering Mat Kits

Anti-Static Soldering Mat Kits

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out

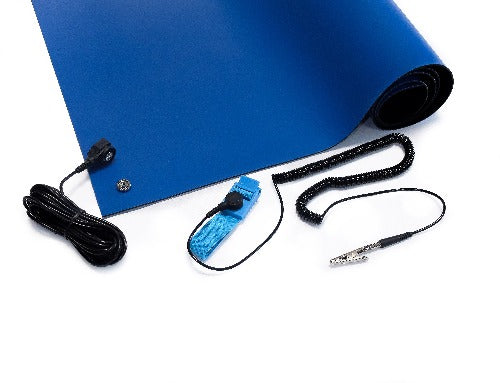

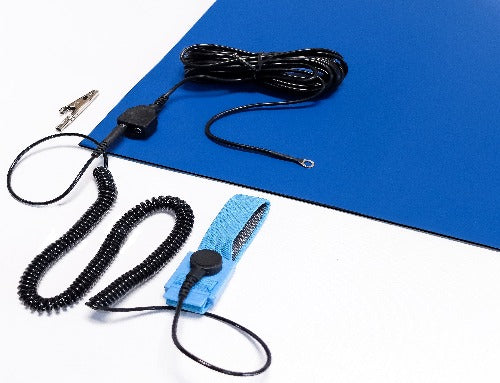

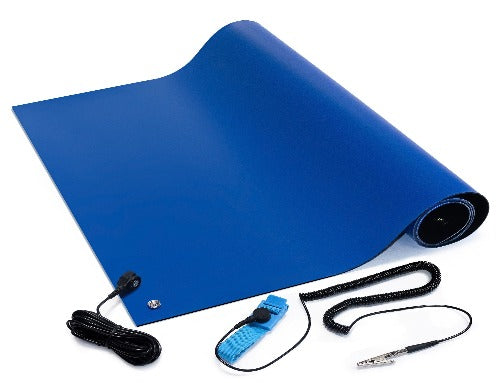

Anti-Static Soldering Mat Kits are designed for electronic repair or assembly facilities to protect Anti-Static sensitive components during the soldering process. They are made of two layers - a blue static dissipative rubber layer at the top and a black conductive rubber layer at the bottom. Anti-Static Soldering Mat Kits include the mat, an anti-static fabric adjustable wrist strap (AFWSB121M), and a grounding cord (CGC151M). They offer an excellent resistance to oil, grease and most common solvents, hot solders and soldering irons. They are also known as ESD Two Layer Rubber Mat Kits.

Custom sizes are available upon request.


Applications: Aerospace, Computer Assembly, Computer Technicians, Data Centers, Electronic Assembly, Fiber Optics Manufacturing, Life Science Industry, Soldering in a High Temperature Setting, and Solar Industry

Part Number 2059S Series
Color Blue
Brand Name Bertech
Material Type Anti-Static Safe Two Layer Rubber
Thickness 0.080"±0.010" ; 5/64"
UNSPSC Code 46182105


Resistance to Ground (Rtg) 8x10e6-8
Point to Point Resistance (Rtt) 2x10e6-8
Available Widths 2 ft., 2.5 ft., and 3 ft.
Standard roll length 50 feet
Tensile Strength >1000 PSI
Temperature Resistance 190° F
