Conductive Grid Tapes

Conductive Grid Tapes

Regular price $5.50 USD
Regular price Sale price $5.50 USD
Sale Sold out

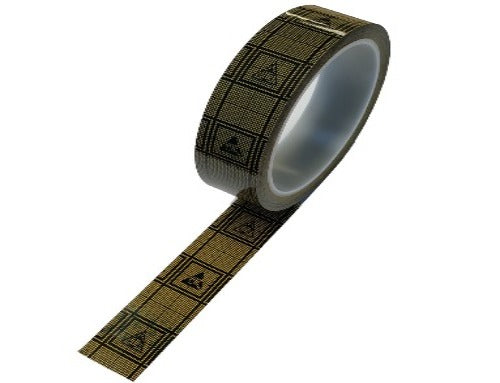

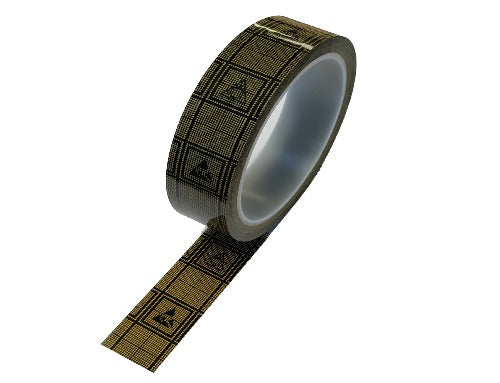

Conductive Grid Tapes are three layered tapes that have a conductive grid buried between two static dissipating copolymer substrates. They provide an anti static non-sparking surface on both the inside and outside that will not shed, crack, chip, or rub off. They are packaged on a 3" core with an Anti-Static symbol printed on the tape. These conductive tapes are used in packaging products that are static sensitive and require EMI shielding. They can be used for grounding as well.

Custom sizes are available upon request.

Applications: Aerospace Assembly, Masking Circuit Boards and Coils, Wafer Dicing Die Cutting, Optic Cables, Solar Panels

Part Number WCGT Series
Color Brown with ESD symbol
Total Thickness 1.9 mil
Adhesive type Acrylic
Elongation 50%
Grid Material Polypropylene


Conductive Grid layer 10e3 to 10e4 Ohms/ sq
Tensile Strength 160N/mm sq
Tribo-charging < 100 volts (Top and Tacky side)
Static Decay 0.5 Seconds
Maximum Temperature 140°F/(60°C)
UNSPSC Code 31201503
